MF Chemical Mixed-flow Pumps

General

MF series are single stage, single suction, radially-split,mixed-flow pumps,arranged either horizontally or vertically, foot support.

The detail design features can be obtained in sectional drawing.

Application

The range is suitable for pumping clean liquids with some tolerance of slight contamination by solids in large quantities and low delivery heads.

■Compulsory circulating media pumps for chemical process

■Sea water pumps for breeding living things

■Pumps for hydro carbon process industry

■For water treatment and supply

■In irrigation and drainage systems

Performance

Size:DN 175~600mm

Capacity:Q ~7000m³/h

Head:H~25m

According to Performance Curves

Pressure:P~1.0Mpa

According to Material and size

Temperaturet:t-20℃~+160℃

Symbol

①Series name

②Suction Branch mm

③Discharge branch mm

④Arranged Type:

   Horizontally if no any symbol

   Vertically if 01

Material

Cast Steel, Stainless steel etc.

Other special material according to situation

Product Features

■Pump of "pull-out" design, the pipework does not to have to be disconnected for inspection and
Dismantling.

■Foot support designing to transmit any forces from pipeline to the foundation.This mean that
the rotor is not subject to any bending.

■The flange pressure grade is 1.0Mpa for the size up to and including 350-400,and the larger pumps according to nominal pressure 0.6Mpa.

■Direction of rotation of the pump : CW when viewed from the driven end.

■The driver:electric motor or turbines or combustion engines.

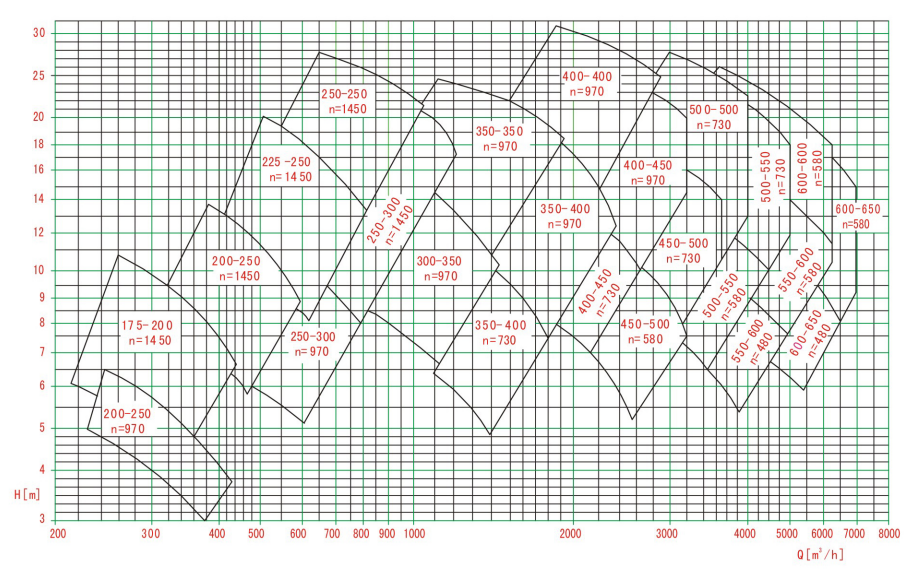

Performance Charts（50Hz）

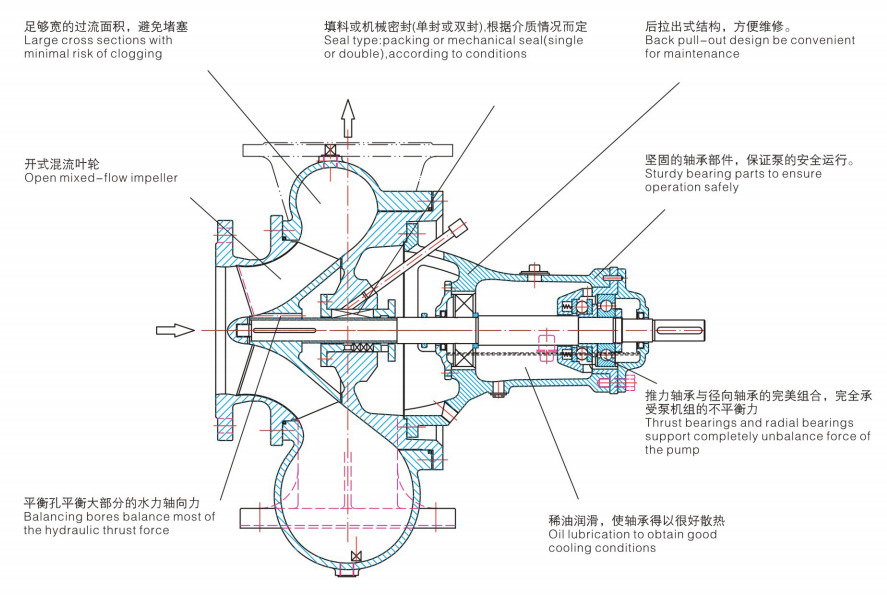

Sectional Drawing（Horizontally Arrangement）

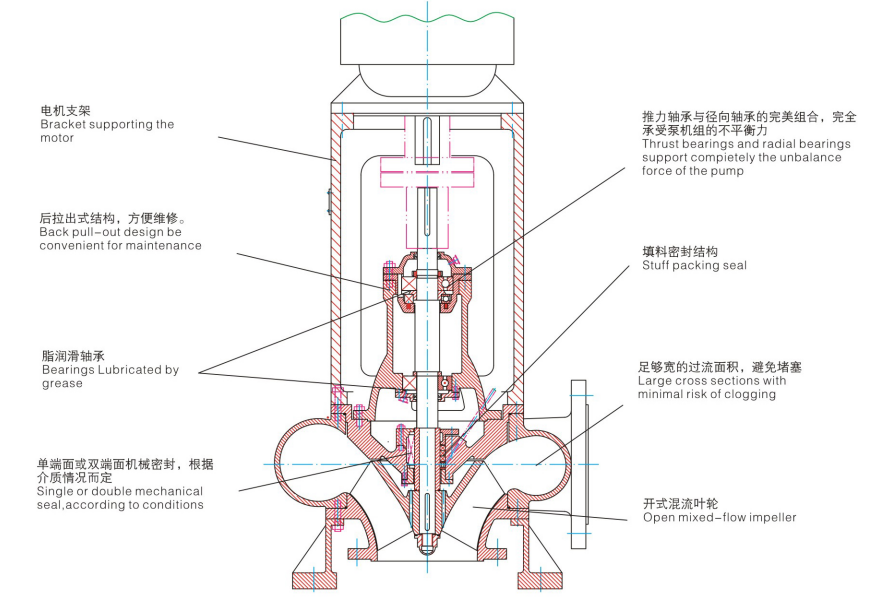

MF-01 Sectional Drawing（Vertically Arrangement）

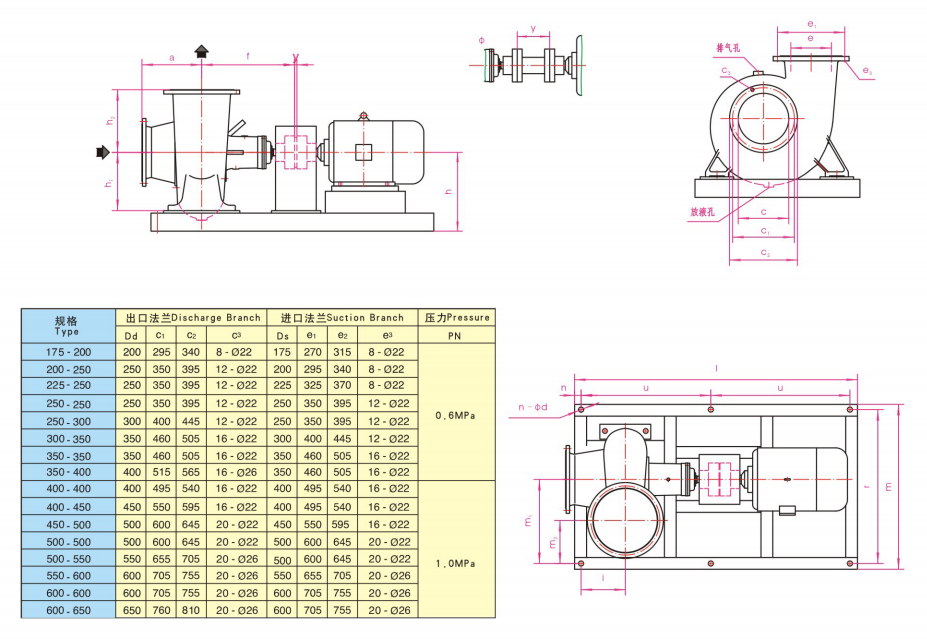

Outline Drawing（Horizontally Arrangement）

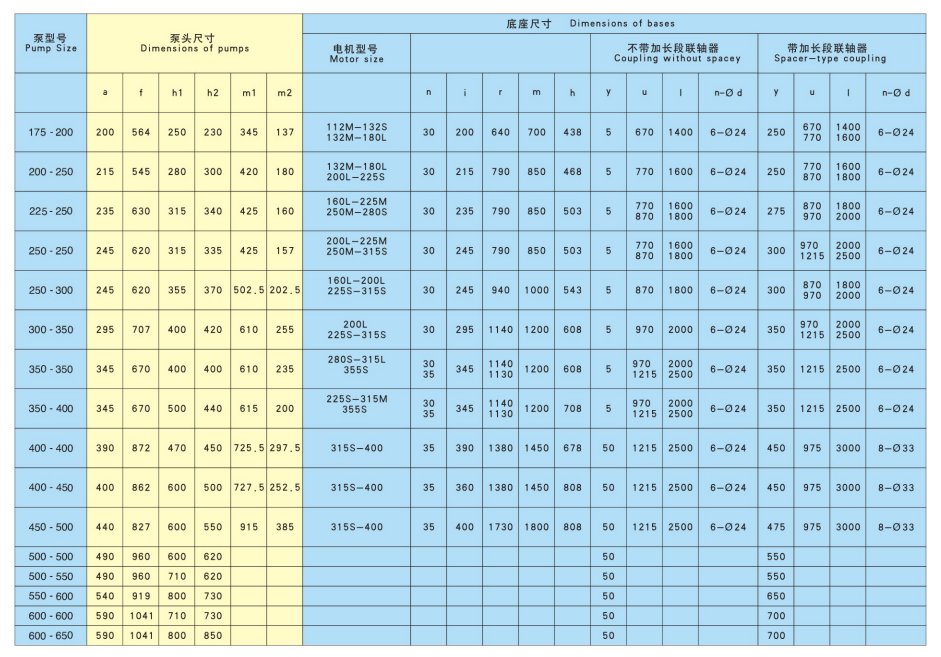

Outline&Installing Dimensions
