ASD Series Double Suction Pump

General

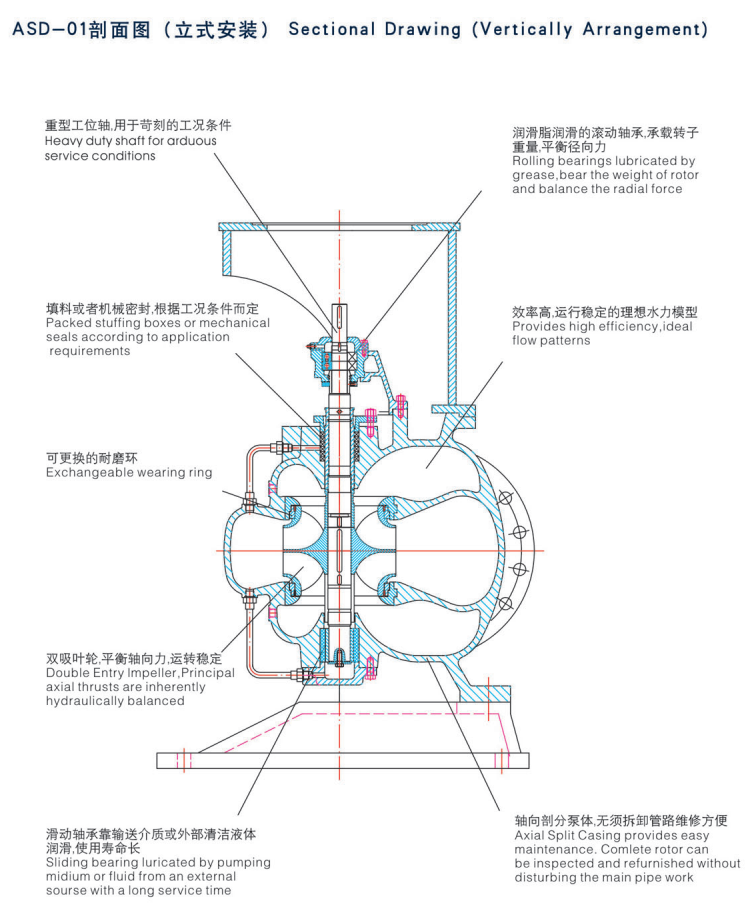

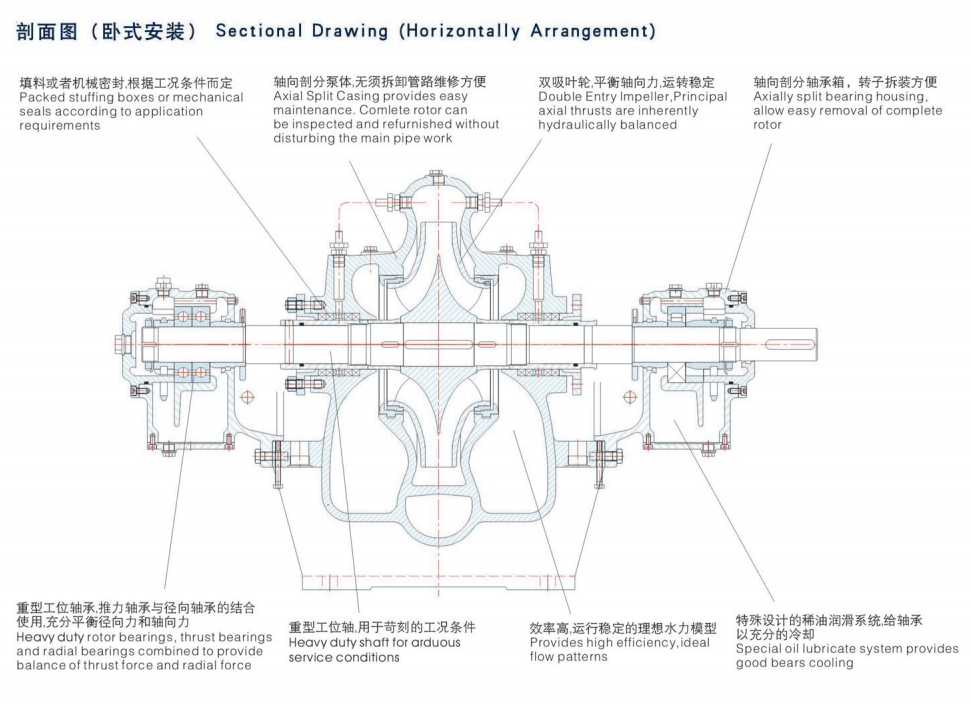

ASD series are single stage, double entry impellers axially-split centrifugal pumps,arranged either horizontally or vertically, foot support, accordant with APl610.The design feature can be gained in sectionaldrawing.

Application

The range is suitable for pumping clean liquids with some tolerance of slight contamination by solids over a wide temperature range. AsD pumps can also be used asenergy recovery turbines.

■For water treatment and supply

■In irrigation and drainage systems

■For power stations,heating systems, and district heating plants

■In fire fighting

■As marine ballast and cooling water

■For sea water desalination plants

■As pipeline pumps and pressure boosters

■In process engineering forindustries

■For offshore duties

■Fan pump for pulp and paper industry

Performance

Size DN125~600mm

Capacity Q~10000 m3/h;

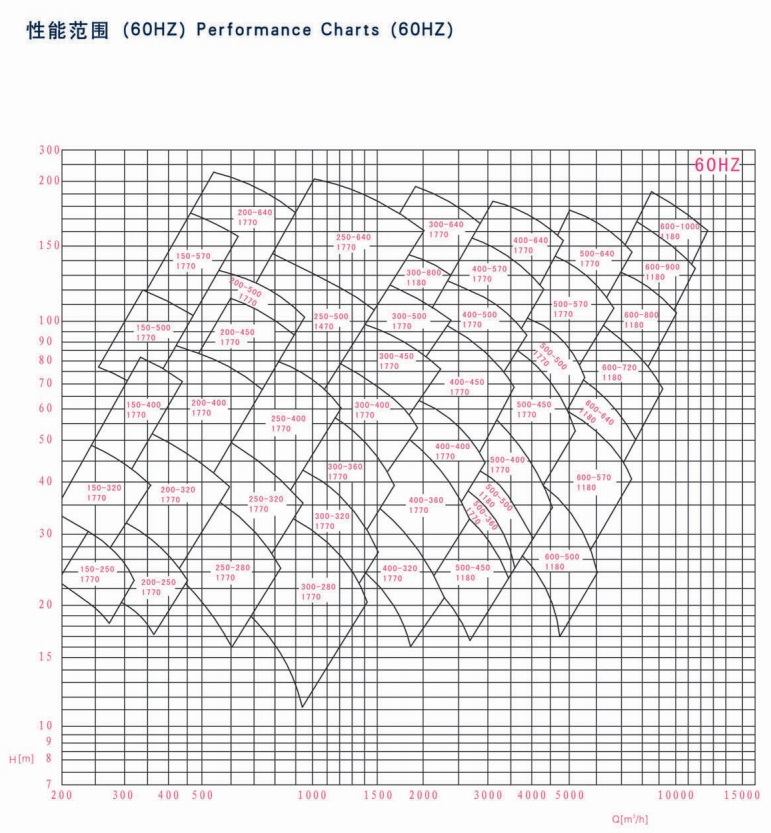

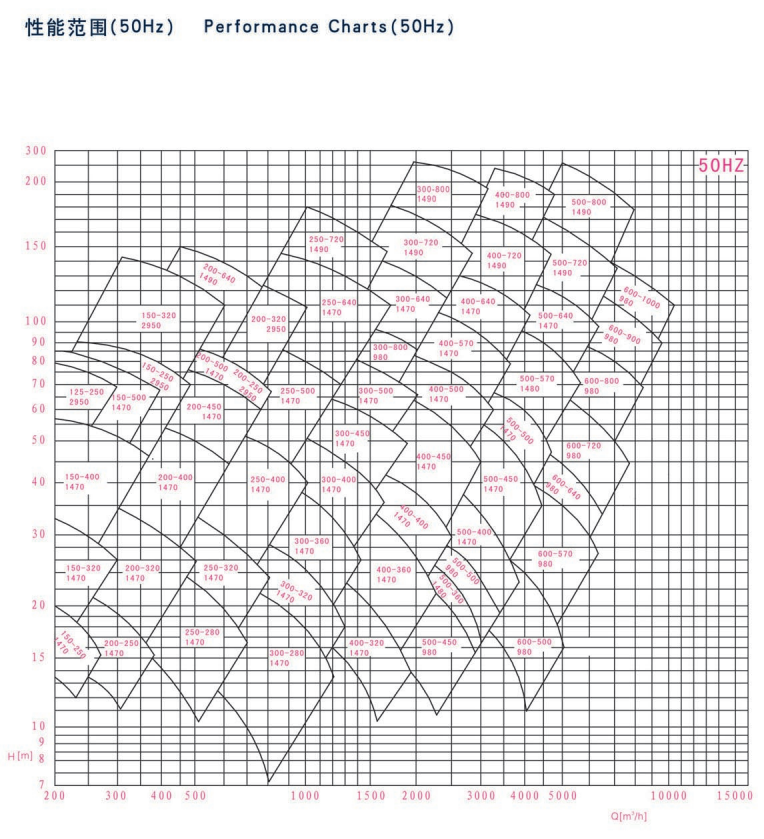

Head H~180m According to Performance Curves

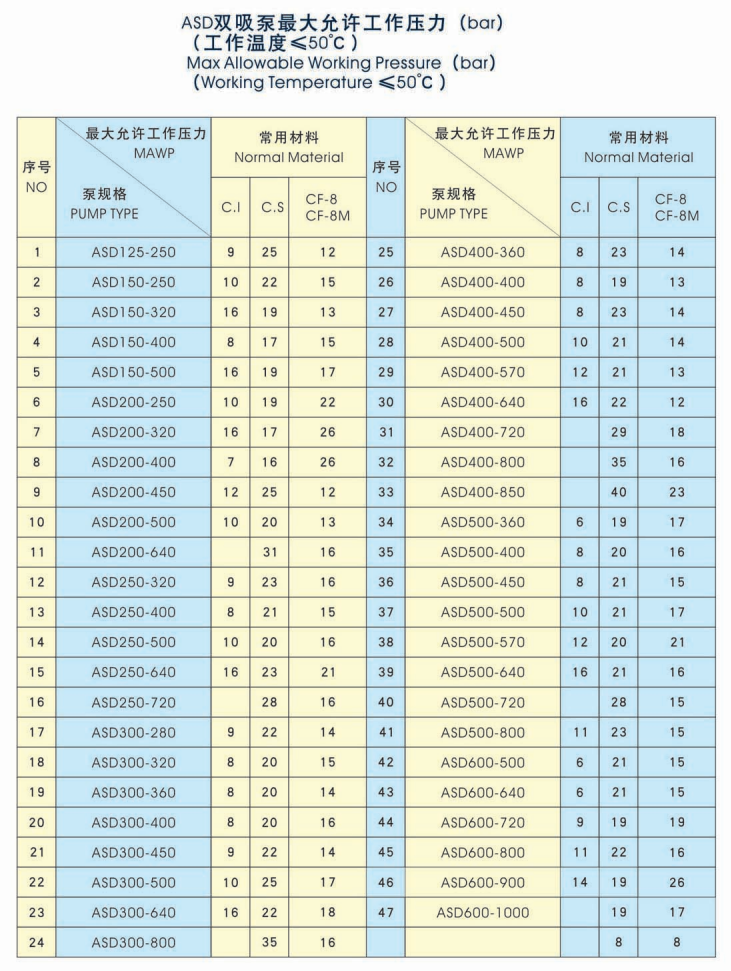

Pressure P-2.5Mpa Accoroding to Material and size

Temperature -20℃~+160℃

Symbol

① Series name

②Discharge Branch mm

③lmpeller Diameter mm

④Arranged Type

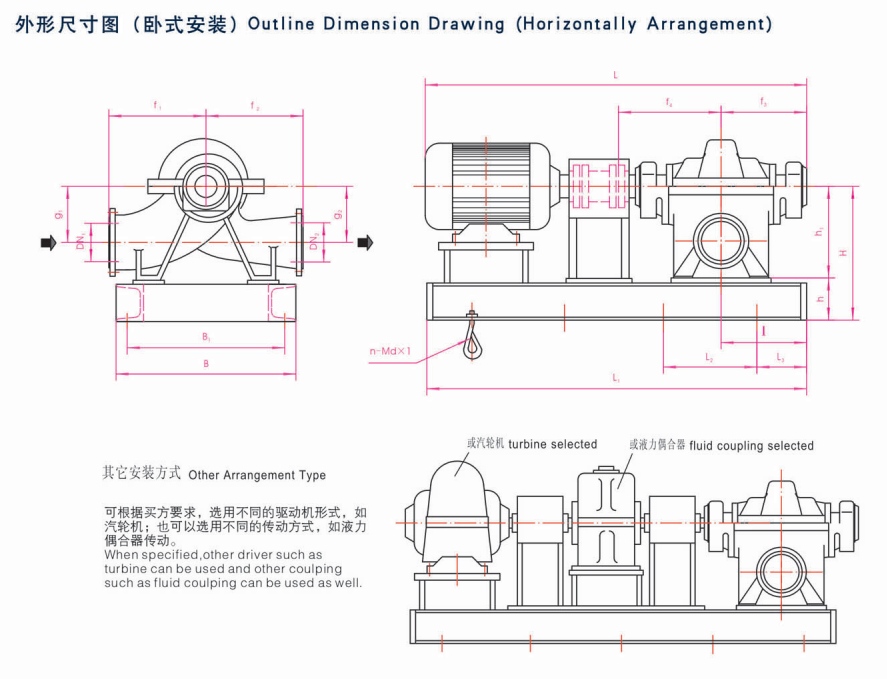

Horizontally if no any symbol

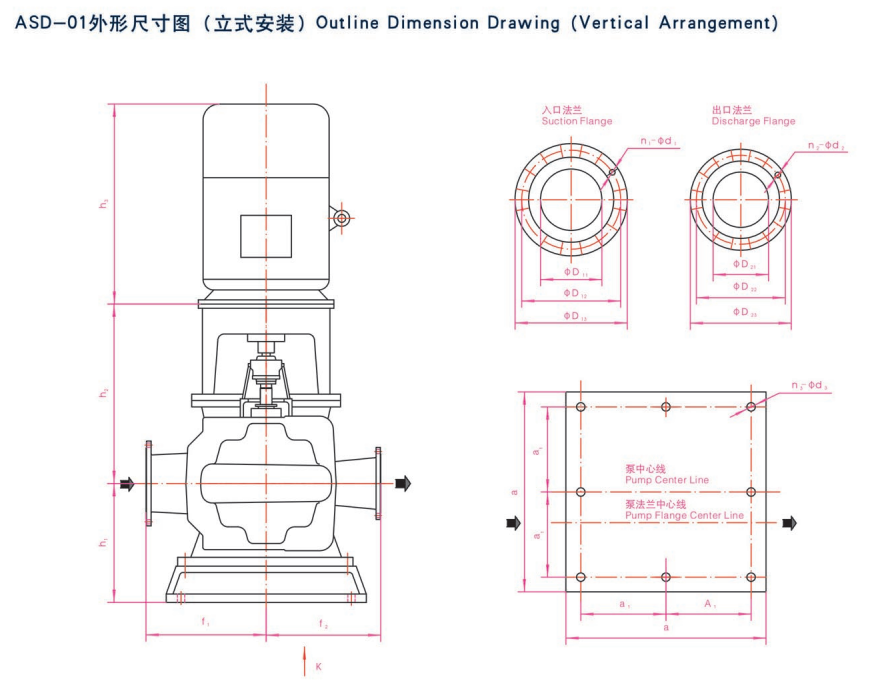

Vertically if 0l

Material

■Cast lron or Ductile lron, Cast Steel, Stainless Steel

■Choosing other special material according to applying situation

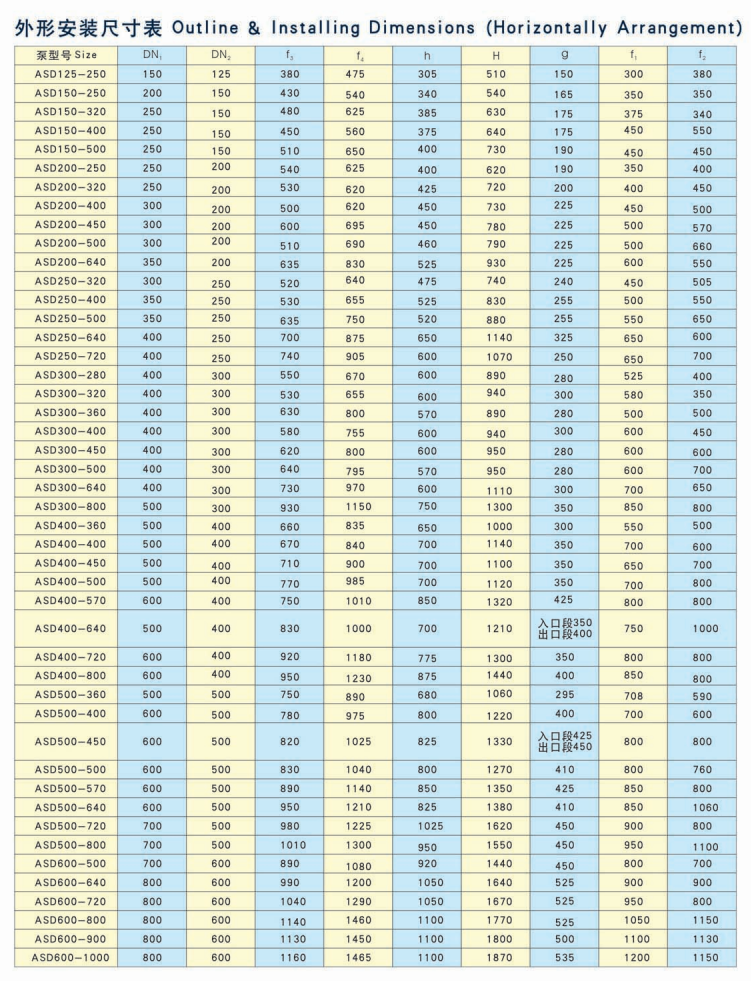

Specification

■The casing is axially split with the suction and discharge braches located in the lower halt-this allows the complete pump rotor with bearings to be moved for maintenance without disturbing the main pipework and valves.

■Flanges are normally to GB standards PN2.5 MPa, or ANSI150#.

■The direction of rotation of the pump: CW wher viewed from the driven end. The shaft can be reversed to allow the pump to be driven from eithe side.
